GSW Pipes and Fittings
Overview
Material Combinations/ Technical Details

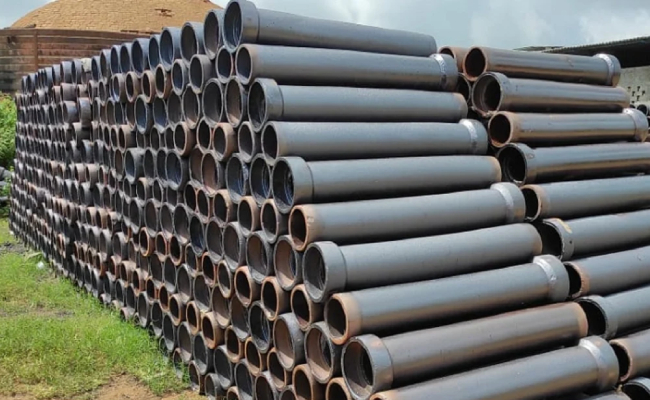

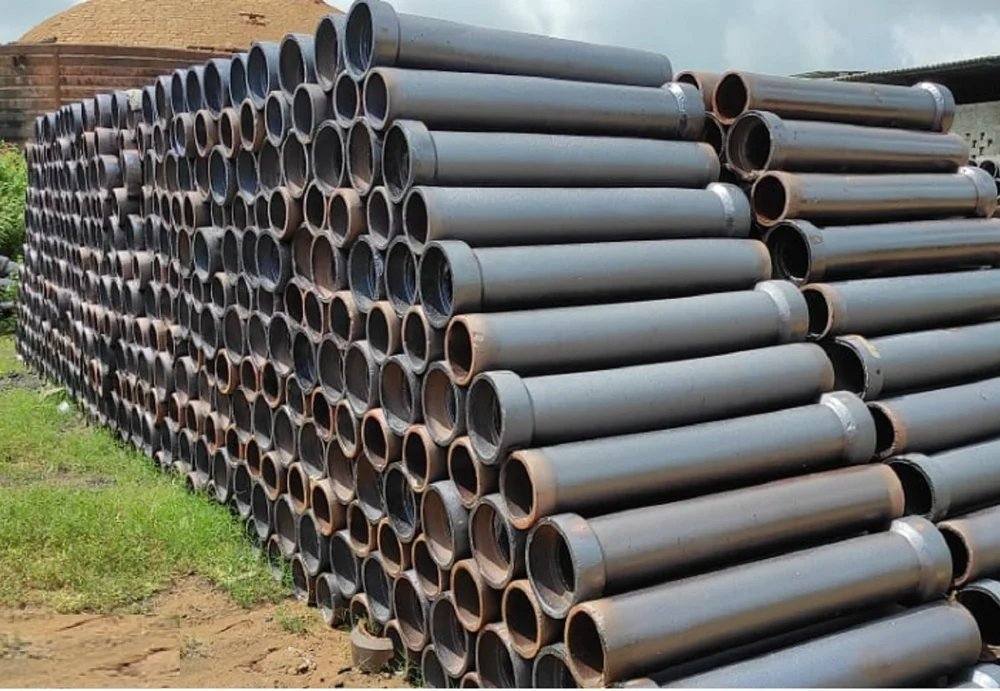

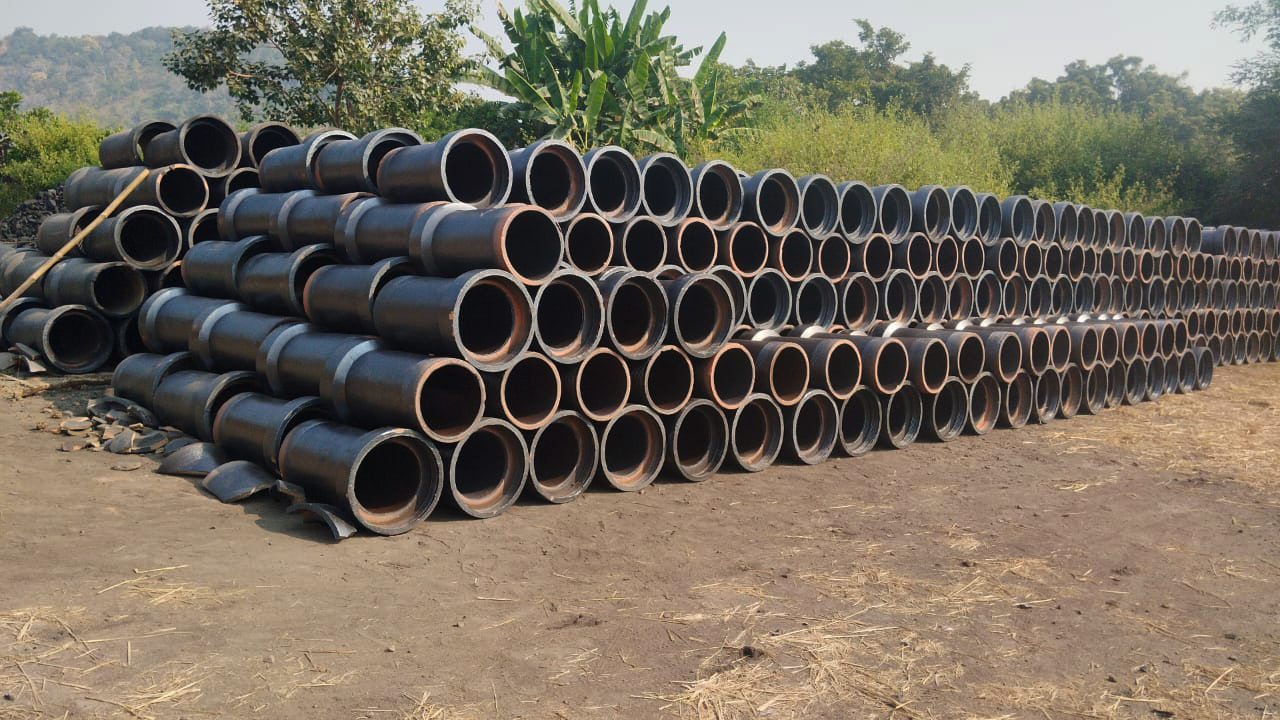

GSW (Glaze Stone Ware) Pipes and Fittings are high-performance ceramic drainage solutions designed for underground sewer and wastewater systems. These pipes feature a smooth glazed interior that ensures excellent flow efficiency and prevents buildup, while their hard, vitrified exterior provides outstanding resistance to corrosion, chemicals and abrasion. GSW pipes are eco-friendly, non-toxic and offer a very long service life, making them ideal for permanent drainage infrastructure.
Used in Projects
- Residential layouts.
- Apartments.
- Commercial buildings.
- Municipal sewer networks.
- Industrial estates.
Applications
- Sewage lines
-
Waste water disposal
-
Underground drainage
Product Catalog
The GSW (Glazed Stoneware) Pipes shown are high-density vitrified clay conduits, salt-glazed at temperatures exceeding 1100°C to create a chemically inert, non-porous interior. Technically, they feature a robust socket and spigot (S&S) joint complying with IS 651:2007 standards , ensuring high crushing strength for deep-earth burial without deformation. These pipes are primarily utilized in municipal sewerage networks, industrial effluent disposal, and household drainage systems due to their 100-year service life and immunity to corrosion . They are available in standard internal diameters of 100mm, 150mm, 200mm, 230mm, 300mm, and 450mm.

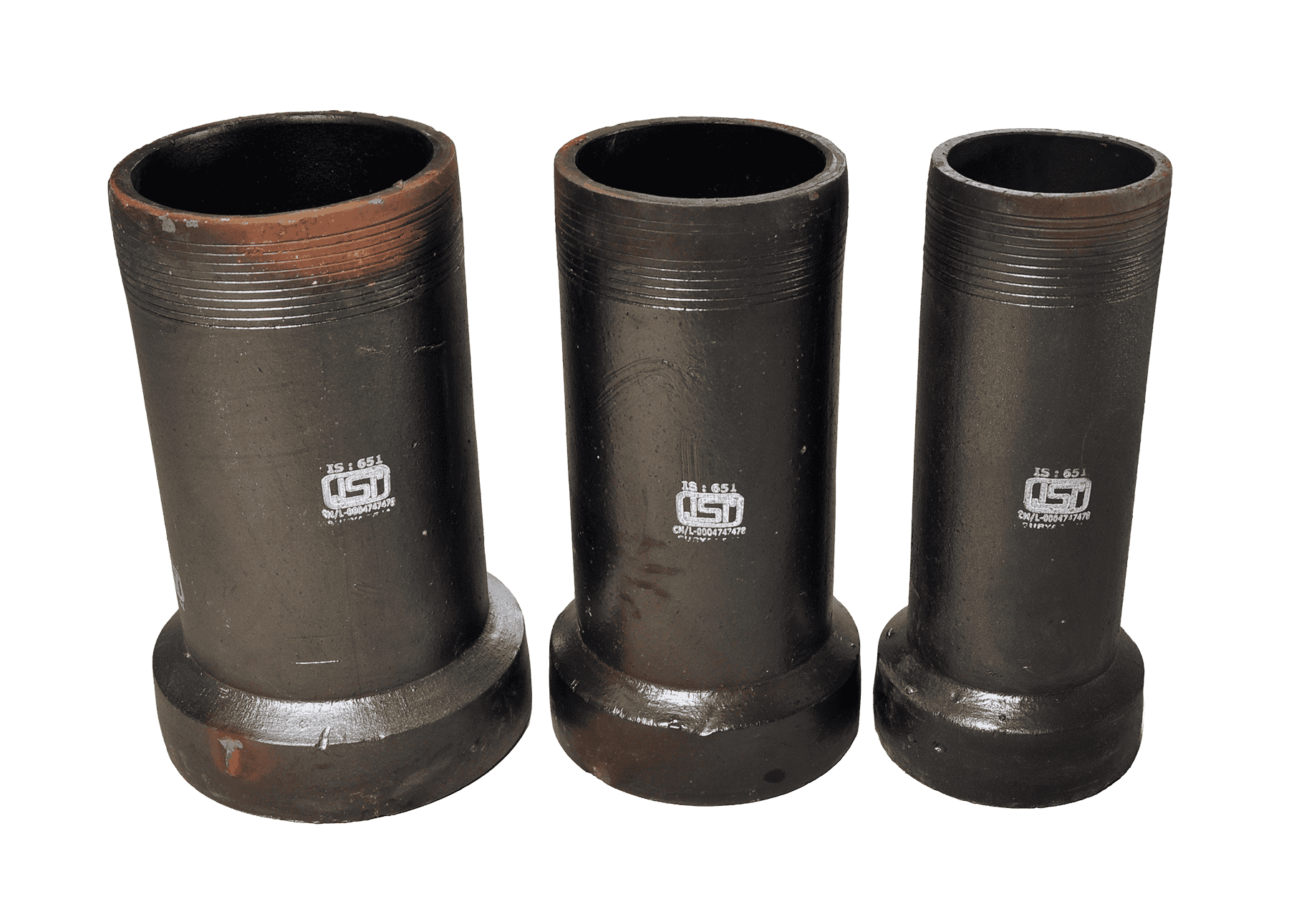

This is a Salt-Glazed Stoneware Pipe, a heavy-duty ceramic conduit manufactured from vitrified clay and fired at 1100°C to achieve a non-porous, acid-resistant finish. Technically, it features a socket and spigot joint (S&S) with grooved ends for secure cement or rubber sealing and complies with IS 651 standards for high crushing strength. These pipes are primarily used in underground sewerage, municipal drainage, and industrial chemical waste disposal due to their 100-year service life and immunity to corrosion. It is available in standard internal diameters of 100mm, 150mm, 200mm, 230mm, and 300mm.

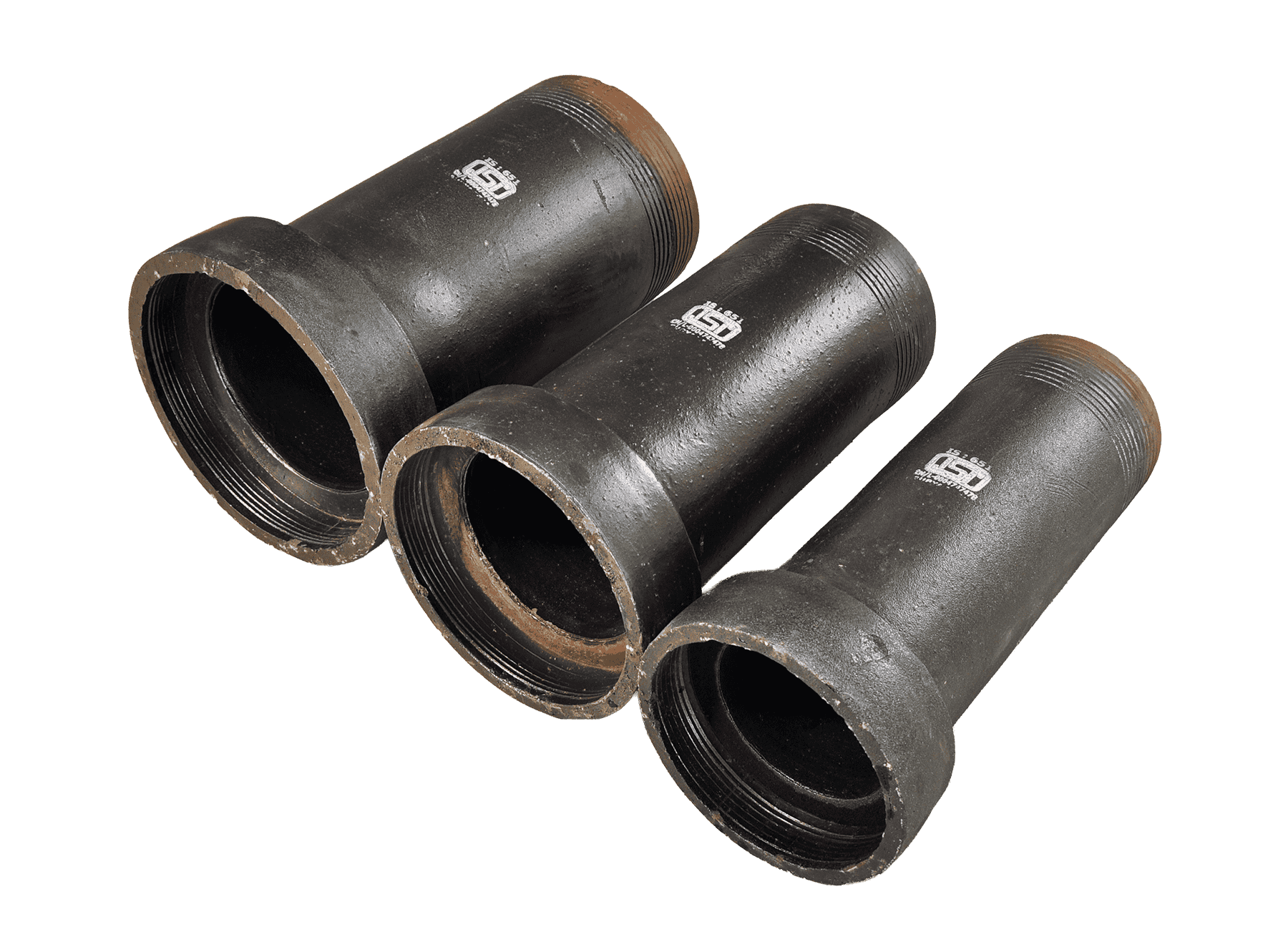

This is a Salt-Glazed Stoneware Pipe, a heavy-duty ceramic conduit manufactured from vitrified clay and fired at 1100°C to achieve a non-porous, acid-resistant finish. Technically, it features a socket and spigot joint (S&S) with grooved ends for secure cement or rubber sealing and complies with IS 651 standards for high crushing strength. These pipes are primarily used in underground sewerage, municipal drainage, and industrial chemical waste disposal due to their 100-year service life and immunity to corrosion . It is available in standard internal diameters of 100mm, 150mm, 200mm, 230mm, and 300mm.

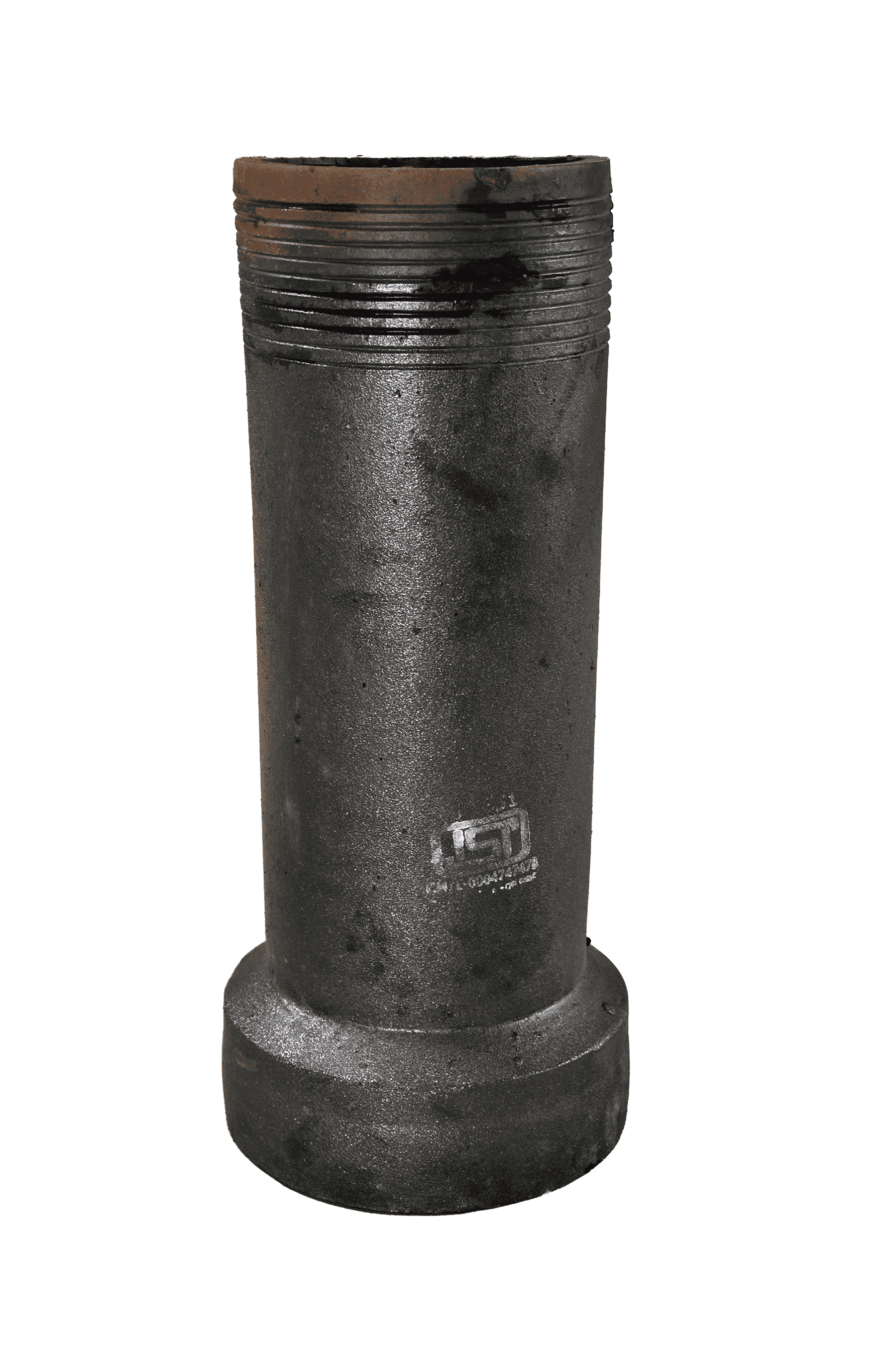

This GSW (Glazed Stoneware) Pipe is a high-density vitrified clay conduit, salt-glazed at 1100°C to create a chemical-resistant and non-porous interior. Technically, it features a socket and spigot joint complying with IS 651:2007 standards , offering superior crushing strength for deep-earth burial without deformation. These pipes are primarily used in municipal sewerage networks, industrial effluent disposal, and household drainage due to their 100-year service life and immunity to corrosion. It is available in standard diameters of 100mm, 150mm, 200mm, 230mm, and 300mm.

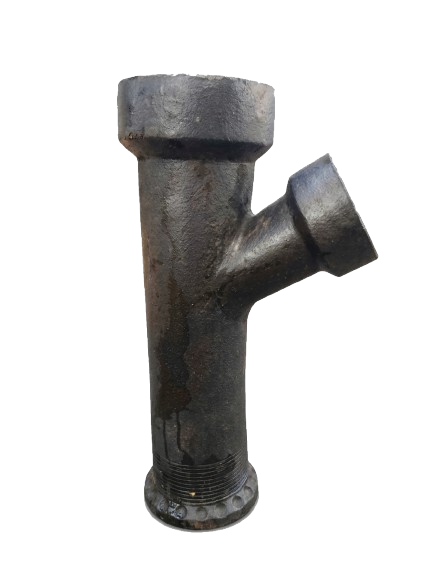

This Salt-Glazed Stoneware (GSW) fitting is used to connect lateral lines to main underground sewer systems. Its salt-glazed, vitrified clay construction offers superior resistance to chemicals and corrosion. The 45-degree angle ensures smooth waste flow and prevents clogs. It is commonly available in sizes from 100mm to 300mm for residential and industrial drainage..

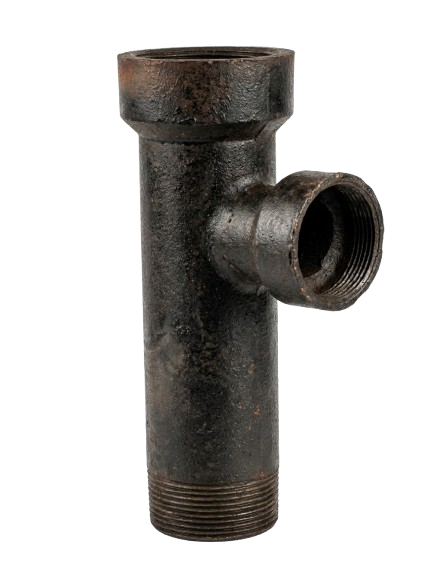

This GSW Single Tee Pipe is a durable ceramic fitting designed for high-performance underground drainage and sewerage systems. Its salt-glazed finish provides exceptional resistance to chemical corrosion, abrasion, and acidic waste. Commonly available in sizes from 100mm to 300mm, it is used to create branches or connections in main pipelines. This robust stoneware ensures long-term structural integrity for both industrial and municipal wastewater management.
Technical Specifications
1. General Technical Specifications
| Property | Specification / Value | Reference Standard |
|---|---|---|
| Water Absorption | Maximum 6.0% by weight | IS 651:2007 |
| Acid Resistance | Mass loss shall not exceed 2.5% (1.0N H₂SO₄) | IS 651:2007 |
| Hydraulic Test | 0.15 MPa internal pressure for 5 mins (No sweating/leakage) | IS 651:2007 |
| Crushing Strength | SP1 (16 kN/m), SP2 (20 kN/m), SP3 (24 kN/m) | IS 651:2007 |
| Jointing Efficiency | Leak-proof up to 2.5m water head | IS 4127:1983 |
| Alkali Resistance | High resistance to sewage chemicals | IS 4127:1983 |
| Root Resistance | Vitrified surface prevents penetration | IS 4127:1983 |
| Service Life | Expected 50 - 100 Years | IS 4127:1983 |
2. Dimensional Specifications
| Nominal Size (mm) | Int. Dia (Tolerance) | Wall Thickness | Socket Depth | Crushing Strength (SP1) |
|---|---|---|---|---|
| 100 | 100 ± 5 mm | 12 mm | 50 mm | 16 kN/m |
| 150 | 150 ± 6 mm | 16 mm | 55 mm | 16 kN/m |
| 230 | 230 ± 9 mm | 21 mm | 65 mm | 20 kN/m |
| 300 | 300 ± 12 mm | 25 mm | 70 mm | 20 kN/m |

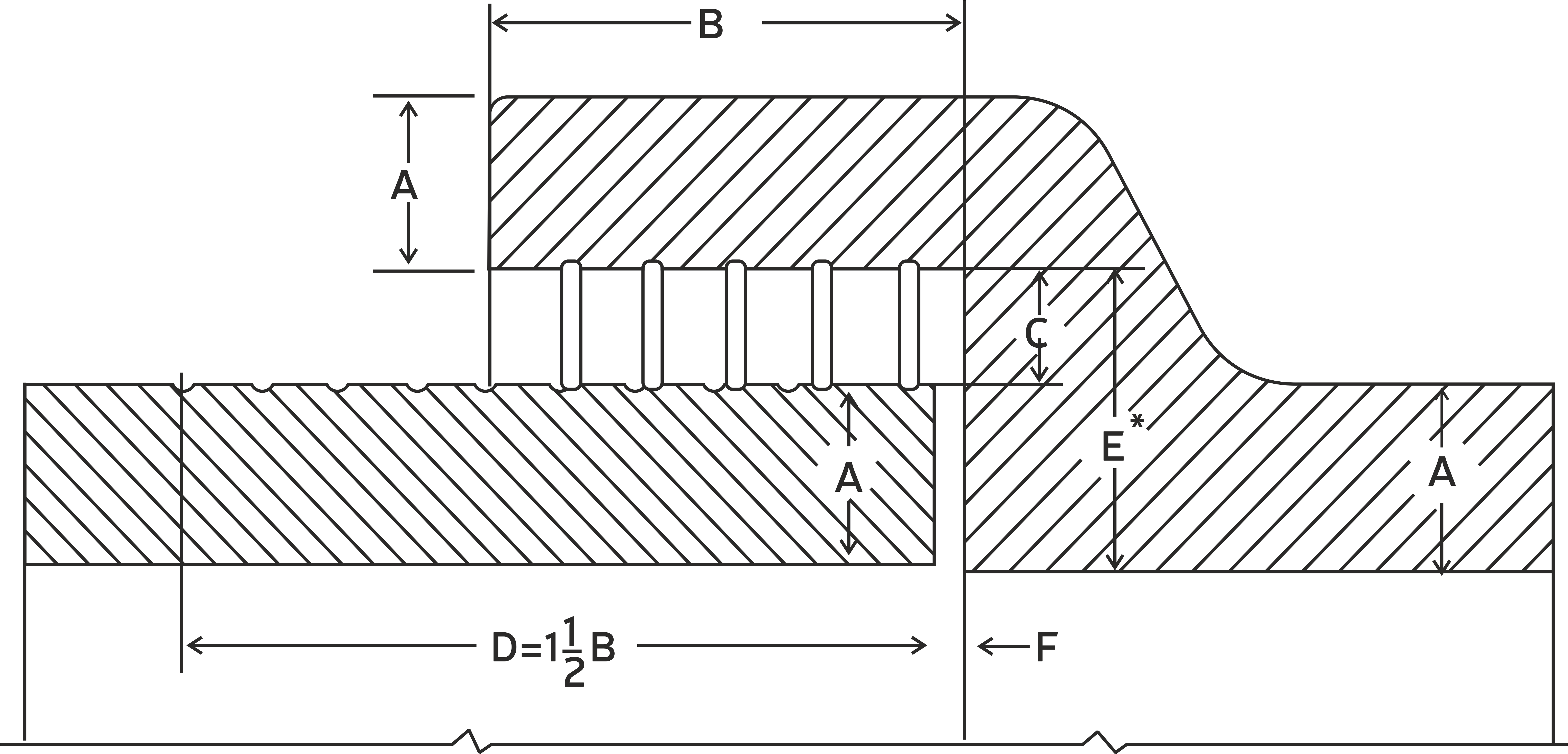

Dimensions Of Barrels and Sockets
IS 651 : 2007 With BIS Marking
All dimensions in millimetres
| Sl No. | Internal Diameter | Class | Mean Thickness Of Barrel and of Socket Min (A) |
Internal Depth of Socket Min (B) |
Excess Shoulder Measurement Min(C) |
Length of Grooving Of Spigot Min(D) |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| i) | 100 |
|
|||||||||||||||||||
| ii) | 150 |
|
|||||||||||||||||||
| iii) | 200 |
|
|||||||||||||||||||
| iv) | 230 |
|
|||||||||||||||||||
| v) | 250 |
|
|||||||||||||||||||
| vi) | 300 |
|
|||||||||||||||||||
| vii) | 350 |
|
|||||||||||||||||||
| viii) | 400 |
|
|||||||||||||||||||
| ix) | 450 |
|
|||||||||||||||||||
| Sl No | Internal Diameter | Class | Mean Thickness Of Barrel and of Socket Min (A) |
Internal Depth of Socket Min (B) |
Excess Shoulder Measurement Min(C) |
Length of Grooving Of Spigot Min(D) |
|---|---|---|---|---|---|---|
| i) | 100 | SP 1 | 12 | 50 | 10 | 75 |
| SP 2 | 14 | 55 | 11 | 82.5 | ||
| SP 3 | 18 | 60 | 14 | 90 | ||
| ii) | 150 | SP 1 | 15 | 57 | 11 | 85.5 |
| SP 2 | 16 | 60 | 12 | 90 | ||
| SP 3 | 20 | 62 | 12 | 93 | ||
| iii) | 200 | SP 1 | 16 | 63 | 12 | 94.5 |
| SP 2 | 18 | 65 | 13 | 97.5 | ||
| SP 3 | 22 | 68 | 15 | 102 | ||
| iv) | 230 | SP 1 | 19 | 63 | 12 | 94.5 |
| SP 2 | 21 | 65 | 14 | 97.5 | ||
| SP 3 | 24 | 68 | 16 | 102 | ||
| v) | 250 | SP 1 | 20 | 70 | 16 | 105 |
| SP 2 | 22 | 66 | 17 | 99 | ||
| SP 3 | 26 | 69 | 18 | 103.5 | ||
| vi) | 300 | SP 1 | 25 | 70 | 16 | 105 |
| SP 2 | 24 | 72 | 18 | 108 | ||
| SP 3 | 28 | 74 | 19 | 111 | ||
| vii) | 350 | SP 1 | 30 | 75 | 16 | 112.5 |
| SP 2 | 32 | 76 | 20 | 114 | ||
| SP 3 | 34 | 76 | 20 | 114 | ||
| viii) | 400 | SP 1 | 35 | 75 | 16 | 112.5 |
| SP 2 | 36 | 77 | 20 | 115.5 | ||
| SP 3 | 38 | 77 | 20 | 115.5 | ||
| ix) | 450 | SP 1 | 37 | 76 | 16 | 114 |
| SP 2 | 40 | 78 | 20 | 117 | ||
| SP 3 | 45 | 79 | 20 | 118.5 |
Installation Note (IS 4127): Minimum earth cover of 90cm is mandatory for pipes under roads. Jointing requires tarred gasket followed by 1:1 cement-sand mortar.
3. Fittings: Bends & Junctions
Standard Compliance: IS 651:2007 for Drainage & Sewerage Systems
Bends (Plain & Door Types)
| Nominal Size | Angle | Radius Type | Socket Depth | Weight (Approx) |
|---|---|---|---|---|
| 100 mm | 90° / 45° | Long Sweep | 50 mm | 4.5 kg |
| 150 mm | 90° / 45° | Standard | 55 mm | 7.2 kg |
| 200 mm | 90° / 45° | Standard | 60 mm | 12.5 kg |
| 250 mm | 90° / 45° | Standard | 65 mm | 19.0 kg |
Junctions (Single & Double T/Y)
| Main Dia | Branch Dia | Junction Angle | Configuration | Application |
|---|---|---|---|---|
| 150 mm | 100 mm | 45° (Y) | Reducing | Branch Connections |
| 150 mm | 150 mm | 90° (T) | Equal | Main Line Junction |
| 200 mm | 150 mm | 45° (Y) | Reducing | Industrial Drainage |
| 250 mm | 250 mm | 90° (T) | Equal | Municipal Sewerage |
Note: Door fittings (with access lids) are recommended at sharp changes in direction to facilitate cleaning and maintenance.
4. Installation Guidelines
Jointing Compound
Tarred Gasket/Hemp soaked in 1:1 Cement-Sand Mortar slurry.
Trenching
Width = Pipe O.D. + 300mm. Minimum cover 0.9m under traffic areas.
Bedding
Sand bedding for stable soil; Lean concrete (1:5:10) for soft/clay soil.
